High chrome cylpbes /Grinding Rod for Autoclaved Aerated Concrete plants
Publishdate:2021-05-24 Views:2806

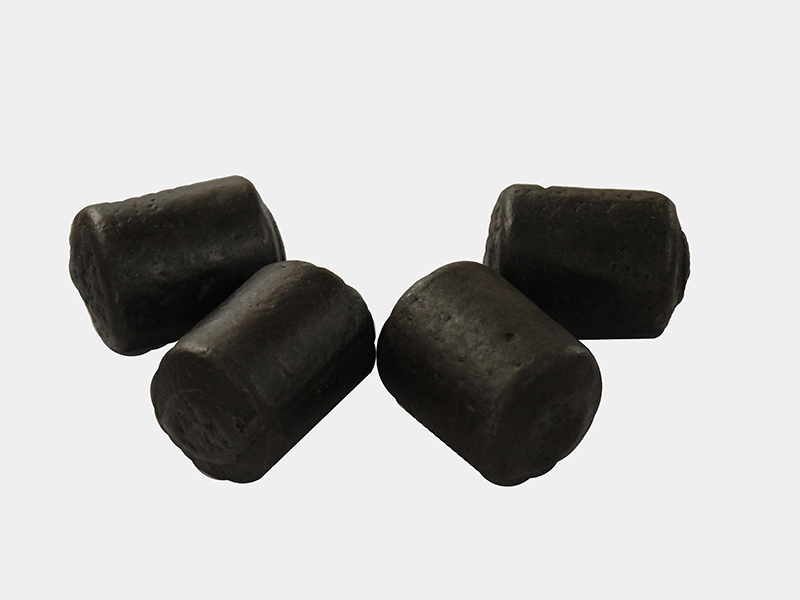

Description of High chrome Grinding Cylpebs/ Grinding Roller
Cast grinding Cylpebs/Roller/cylinder Roller is used for mining, cement plants , power plant.
1. High hardness: From 45 to 65 Breakage rate ≤ 1%;
2. Chromium percentage: customized
Super High Chrome: 15-26% High Chrome: Cr=10-13% Medium Chrome: Cr=3-6% Low Chrome: Cr=1.0-3.0%
3. Grinding cylpebs diameters from 8x10mmtoφ45x50mm
4. Characteristics: High hardness, good wear resistant, low breakage, no deformation.
5. Application: cement plant,AAC Plant - Autoclaved Aerated Concrete Plant ,Calcium silicate fiber- cement boards
Chemical composition
| Chemical Composition(%) | |||||||||||
| C | Si | Mn | Cr | P | s | Mo | Cu | Ni | |||
| 1.7-3.2 | 0.3-1.2 0 | 0.5-1.0 | 10-13 | ≤0.10 | ≤0.10 | Minor | Minor | Minor | |||
| Hardness (HRC) | Micro-structure | ||||||||||
| 58-64 | M+C | ||||||||||
| M -- Martensite | C——Carbide | ||||||||||
| Diameter | Ø8X10 | Ø10X12 | Ø12X14 | Ø14X16 | Ø16X18 | ||||||
| (mm) | Ø18X20 | Ø20X25 | Ø25X30 | Ø30X35 | Ø35X40 | ||||||
physical properties of high chrome Grinding Grinding Cylpebs
| Diameter (mm) | Diameter Tolerance (mm) |
| φ8x10 | |
| φ10x12 | |
| φ12x14 | 1 |
| φ14x16 | -1 |
| φ16x18 | |
| φ18x20 | |
| φ20x25 | |
| φ25x30 | |
| φ30x35 | |
| φ35x40 | 1.5 |
| φ40x45 | -1 |
| φ45x50 |
Load Capacity of packaging materials
| Heavy-duty Jumbo Bag | Steel Drum | |
| Load capacity of Jumbo bag | Ball size | Net Weight |
| 20-30mm | 930-1000KGS | |
| 1000kg/bag (GW: 1002Kgs) | 40-60mm | 900-930KGS |
| 70-90mm | 830-880KGS | |
| 100mm-150mm | 830-850KGS | |
Packaing Methods :
